How to Create a Bar Chart

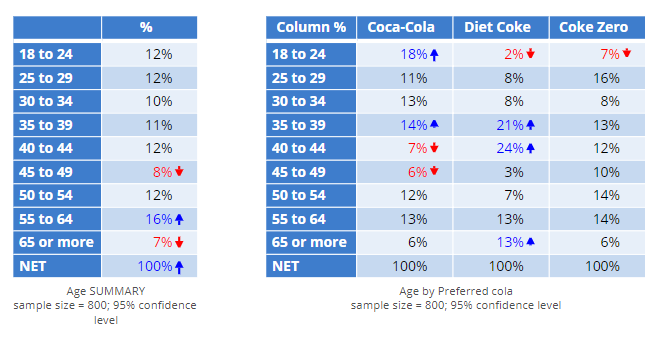

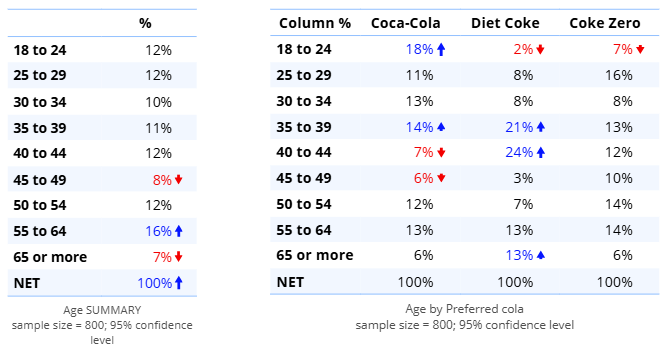

This article describes how to show data from variables or two different types of tables: summary tables with a single column and crosstabs with multiple columns, like these:

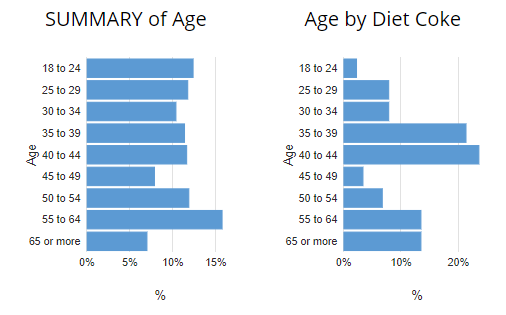

To bar charts like these:

Requirements

A Displayr document with at least one of the following:

• A table with one or more columns, OR
• At least one variable or variable set with the following structure
  • Nominal - Mutually exclusive categories structure, OR
  • A Date/ Time variable, OR
  • A multiple-response variable set structured as a Binary - Multi: Non-mutually exclusive categories

Method: From the visualization menu with a single-column table or one variable

1. Select Visualization > Bar > Bar from the toolbar.
2. Click on the page to place the visualization.
3. Under Data > Data Source >Data select the table that you want to base the chart on. Alternatively, select a nominal or date/time variable in the Variables dropdown.
4. OPTIONAL: If Variables is selected, tick Convert to Percentages/Proportions under Data Manipulation.
5. Click Calculate and/or ensure that Calculate automatically is checked.

Method: From the visualization menu with a multi-column table or two variables

1. Select Visualization > Bar > Bar from the toolbar.
2. Click on the page to place the visualization.
3. Under Data > Data Source > Data select the table that you want to base the chart on. Alternatively, select a nominal or date/time variable in the Variables dropdown and a second variable in the Groups drop-down.
4. OPTIONAL: If Variables is selected, tick Convert to Percentages/Proportions under Data Manipulation.

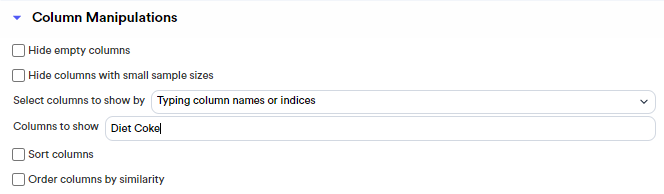

5. In Column Manipulations > Columns to show enter the label or index of the column.  In the example above, "Diet Coke" was entered. Alternatively, the number 2 could have been entered(the index of the second column on the table).
6. Click Calculate and/or ensure that Calculate automatically is checked.

Method: From an existing single-column table

1. Select the table.
2. From the object inspector, click Visualization > Bar > Bar.
3. Click Calculate and/or ensure that Calculate automatically is checked.

Method: From an existing multi-column table

1. Select the table.

2. From the object inspector, click Visualization > Bar  > Bar.

3. Under Data > Column Manipulations > Columns to show enter the label or index of the column.  In the example above, "Diet Coke" was entered. Alternatively, the number 2 could have been entered (the index of the second column on the table).

4. Click Calculate and/or ensure that Calculate automatically is checked.

Options

The following is an explanation of the options available in the Object Inspector for this specific visualization. Refer to Visualization Options for general chart formatting options.

Chart

Appearance

• Gap between bars - Specify the amount of space between bars as proportion of the available space. Values can range from 0 (no gaps) to 0.99 (bars are shown as lines).

Data Lables

• Minimum threshold to show data labels - Data labels will be hidden in Stacked charts for values that are smaller than this proportion of the total range.

Note

Important information about editing captions:

Visualization caption edits may not be retained when a visualization with a nested table is switched back to the table. Normally, this only occurs when you double-click the caption and edit the text directly. As a workaround, we recommend using Appearance > Caption > Edit caption to edit your captions.
