How to Access Legacy "with Tests" Visualizations

  • Updated
Follow

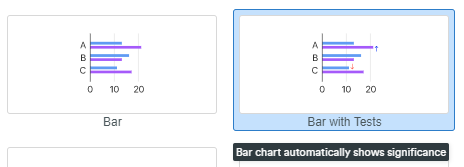

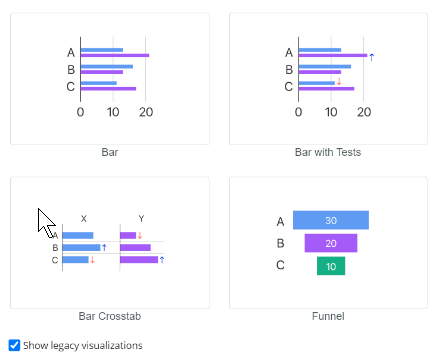

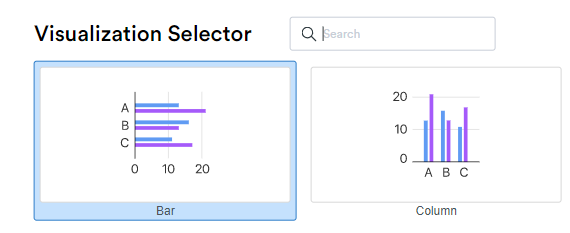

Visualizations "with Tests" ( e.g., Bar Chart with Tests, Stacked Bar with Tests, etc.) are hidden by default from the visualization selector in Edit mode. To see these legacy visualizations, check the Show legacy visualizations box in the Visualization Selector.

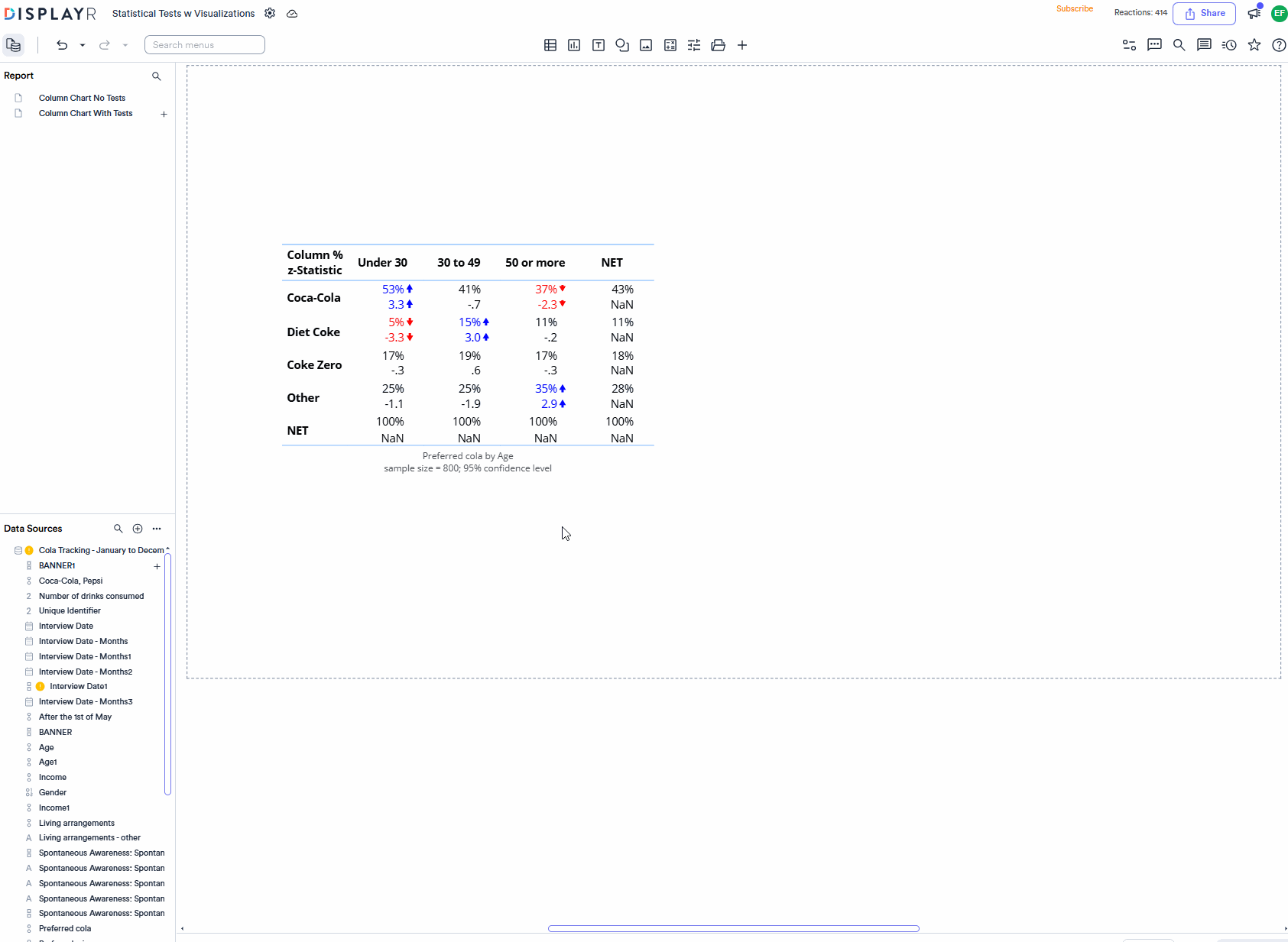

26UI - charts w stat tests.gif

After you check the Show legacy visualizations box, your web browser will remember your selection the next time you visit Displayr. The legacy visualizations will still appear in searches when using the Search boxes in the Visualization Selector and at the top of the page.

The following legacy charts will still be visible as they don't yet have any R-based counterparts:

  • Bar Crosstab

  • Mekko

  • Stacked Column with Custom Tests
  • Column with Trend Tests

  • Time Series Column

  • Snake with Tests

  • Time Series with Tests

  • Horizontal Dot with Tests

  • Vertical Dot with Tests

  • 2D Histogram

  • Categorizable Histograms

  • Categorizable Small Multiples Histogram

  • Small Multiples with Tests for Trends

  • Word Cloud

  • Bump

Method

For example, to create a Bar with Tests legacy visualization:

  1. Create a table with the data you want to visualize.
  2. In the Object Inspector, select Visualization > Bar.
  3. Check the Show legacy visualization box.
  4. Select Bar with Tests
