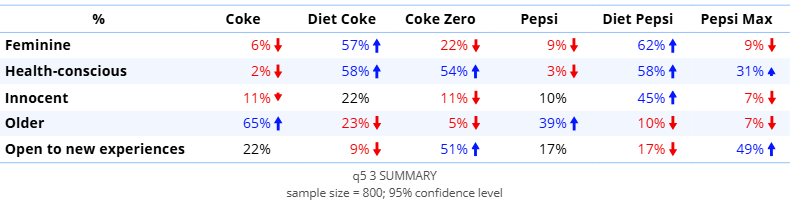

This article describes how to create lots of small versions of a visualization as small multiples. This is sometimes referred to as "Facet" or "Panel" charts. Starting with a multi-series table, like this example that shows brand personality associations with soft drinks:
We'll turn this into a single output with lots of small charts - one for each brand, like this:
This functionality is available for Area Charts, Bar Charts, Bubble Charts, Column Charts (as in the example here), Geographic Maps, Line Charts, Radar Charts, and Scatter Plots.
Requirements
A table that has more than one column (series) to chart.
Method
1. Go to Visualization > Column > Small Multiples Column (or any of the specific types listed below).
2. Under Inputs > DATA SOURCE > Output in 'Pages' select the table that you want to chart.
3. OR under Inputs > DATA SOURCE > Variables in 'Data' select the variables you want to chart.
Notes
Example | Path within the Visualization menu |
Area > Small Multiples Area | |
Bar > Small Multiples Bar | |

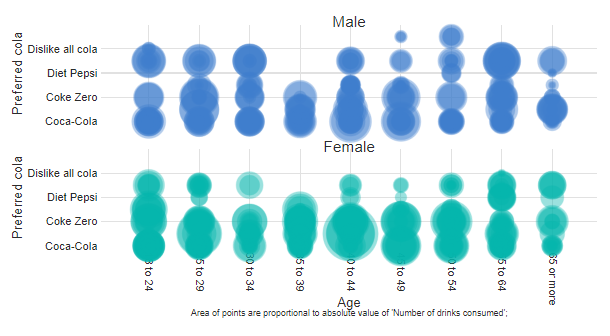

Bubble > Small Multiples Bubble | |
Geographic Map > Small Multiples Geographic Map | |
Line > Small Multiples Line | |
Radar > Small Multiples Radar | |
Scatter > Small Multiples Scatter |
See Also
How to Create a Bar Chart from a Table
How to Create a Column Chart from a Table
How to Create a Geographic Map
