How to Tag a Variable as a Filter

This article describes how to set any non-text variable as a filter that can be used to filter outputs in Displayr. Variables that are tagged as a filter are shown in the page Filter dropdown in the header strip in View Mode of a Document (known as page filtering):
View Filter.png

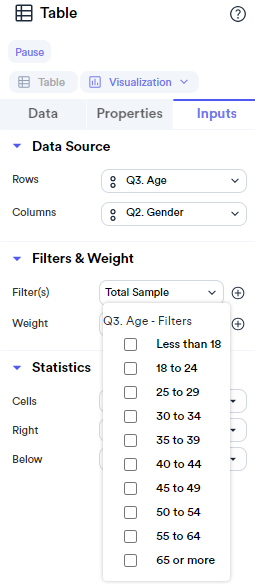

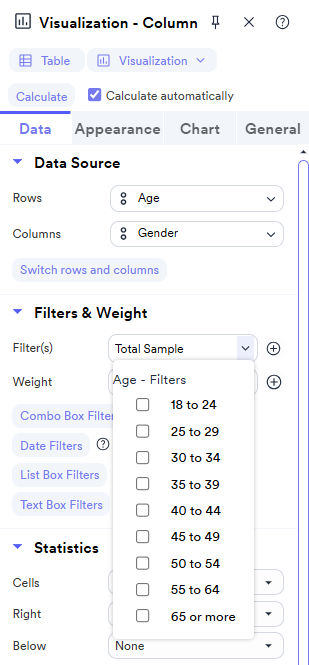

and can be used in the Filters & Weight > Filter(s) dropdown in Edit Mode to filter outputs in the Document.

Requirements

A Data Set with at least one non-text variable.
Your variable to be in the appropriate format for the type of filtering you want to do. Cases that have a value of more than 0 are included in the filter. You may need to modify your data to get it in the appropriate format for filtering, see the Required Data Format section below, otherwise, you can use the Method to tag variables as filters directly.

Required Data Format

Use this table to convert your variable into the required format for the type of filtering you want:

The Variable Set to use as filters is Structured as:	You want:	What to do:
A Nominal variable (categorical)	A filter variable for each category	How to Create a Binary Filter from Selected Data
A Nominal variable (categorical)	A filter to filter in respondents who left any response	Assuming responses are coded with values above 0 - do Method below
A Nominal or Nominal-Multi variable	A filter to filter in respondents who left SELECT responses (such as a Top 2 Box)	Change Structure > Binary-Multi, in Values > Count This Value for select categories - do Method below by checking Usable as a filter
A Binary-Multi variable	A filter for each variable	Do Method below by checking Usable as a filter
Across two variable sets	Each variable in a set rebased according to matching variables in the other variable set OR Expand each category/variable in one variable set filtered by each category/variable in the other variable set	How to Rebase One Question Based on Another Question
A variable set	To filter based on criteria	How to Create a Simple Filter or Use R Code to Create a Filter or Use JavaScript Code to Create a Filter
Across variable sets	To filter based on criteria from each	How to Create a Complicated Filter or Use R Code to Create a Filter or Use JavaScript Code to Create a Filter
Date/Time	To filter in a specific range or the most recent X periods	Configure in the Date/Time > Period type using a Date range or Duration - do Method below
Numeric	To filter in data based on a calculation across respondents or value of another variable set (note if the calculation is across variables for each respondent, you can create a variable for the calculation, How to Perform Mathematical Calculations on Variables, then use that to create Create a Filter)	Use R Code to Create a Filter or Use JavaScript Code to Create a Filter
Binary-Multi (Compact) or Nominal-Multi	A filter for each category/response (this will be a NET of the response across the variables in the set)	Change Structure > Nominal - Multi and while the variable is selected, in the Data Sources tree, click + > Convert To > Binary - Multi > Values Greater Than 0

Method

Select the variable you'd like to use as a filter from the Data Sources tree.
In the object inspector, check Properties > General > Usable as a filter.
[OPTIONAL] If you don't want the filter to be available for viewers, check the Hidden in View Mode Filter menu box before you apply it to anything in your document, see How to Customize the Filter Control List in View Mode for more info.
