How to Set Up a Background in the Page Master

  • Updated
Follow

This article describes how to set up a background by inserting images and shapes from the Images and Shapes menus in the toolbar. When you go into the Page Master, you can see the different page layouts on the left (Title Only, Blank, etc.).

Requirements

  • You will need to:
    • Create a new Document by selecting New > Document on the Documents page, or
    • Open an existing Displayr Document

Method

Get creative and design a background for your dashboard, e.g., add a block of color, a photo, or a logo. To insert a background image:

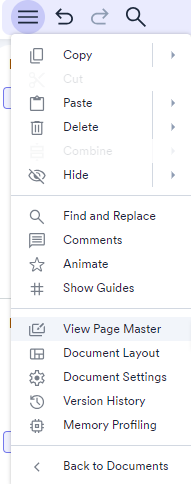

  1. To access the Page Master, click on 26UI_PageMaster.png
  2. Select a Page layout from the Master pane where you'd like to change the background.
  3. To use an image as the background:
    • Insert your image: from the toolbar, click on Image and select your image.
    • Make sure the image fills the page by dragging it to size.
    • Images are automatically compressed to optimize resolution vs load time in browsers online. You may wish to turn this off or also enable it for exporting via Properties 26UI_ObjectInspector.png> General > Image Compression menu.
  4. To change the background color:
    • From the toolbar, click on Shape > Square.
    • Draw a square the same size as the page area in the work area.
    • Use Properties 26UI_ObjectInspector.png> Appearance menu to customize the colors.
  5. After inserting and modifying your background, you need to put it behind the other elements on the page. To do so, right-click and select Arrange > Send to Back.
  6. Do this for every page type you want to have a background under the Master tree.
  7. To return from the Page Master view, click the 26UI_ExitPageMaster.png button at the top right of the screen. This will take you back to the Normal view, where you can carry on creating your report.
  8. You can apply the layout to the current page in your document by clicking on the Page in the Report tree and in Properties 26UI_ObjectInspector.png and selecting it in the Appearance > Layout > Page layout menu.

Technical Information

  • Every Page Master (default and custom) in Displayr will be exported to PowerPoint as a slide layout within the Slide Master.
  • Objects that can be added to a Page Master (e.g., text items, images, shapes, controls, placeholder textboxes) will appear in PowerPoint on these slide layouts, with the exception of page numbers.
