This article describes replicating the calculation of Components/Dimensions values derived from the Principal Component Analysis analysis in Displayr. The final output matches the values created by Displayr when following the steps outlined here: How to Save Components/Dimensions from a Dimension Reduction Output.

## Requirements

- A dimension reduction output created in Displayr such as Principal Component Analysis, Correspondence Analysis, Multidimensional Scaling or t-SNE.

See: How to Do Principal Component Analysis in Displayr.

## Method

- OPTIONAL: The below steps assume that the Principal Component Analysis is weighted. If you don't require a weight, you can create a weight of 1 for all respondents. This will return the same outputs as an unweighted analysis.
- Hover over the

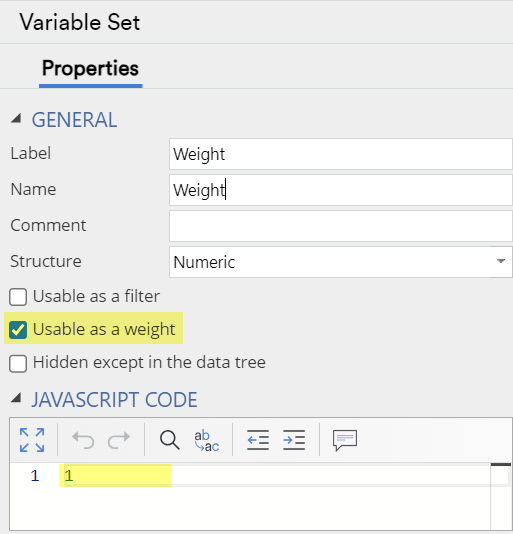

**Data Sets tree**and select**+ > Custom Code > JavaScript - Numeric**. - Input a value of 1 into the
**JAVASCRIPT CODE**window. - Select
**Usable as a weight.** - Select the PCA output, go to
**Inputs > FILTERS & WEIGHTS**, and select the Weight from the drop-down.

- Hover over the
- The first step of the process requires us to obtain the respondent data and weights from the PCA analysis and compute the weighted mean and standard deviation.
- Select
**Calculation > Custom Code**from the toolbar and draw an output on the page. - Go to
**Properties > R Code**and input the below code:

#Define your input mode name

Note: the first of the code assumes the PCA output is called

input.model = dim.reduce

#Obtain the respondent level data and weights

respondent.data = input.model$data.used$subset.data

weights = input.model$data.used$subset.weights

#Function to calculate the weighted response level data and standard devition

weightedMeanAndSD <- function(x, weights)

{

complete.cases <- !is.na(x) & weights > 0

wx <- x * weights

weighted.mean <- Sum(wx[complete.cases], remove.missing = FALSE) / Sum(weights[complete.cases], remove.missing = FALSE)

sx <- x - weighted.mean

wsx2 <- weights * sx * sx

weighted.variance <- Sum(wsx2[complete.cases], remove.missing = FALSE) / (Sum(weights[complete.cases], remove.missing = FALSE) - 1)

return(list(weighted.mean = weighted.mean, weighted.sd = sqrt(weighted.variance)))

}

weighted.mean.and.sd = lapply(respondent.data, FUN = function(x, weights) { unlist(weightedMeanAndSD(x, weights)) }, weights = weights)

#Return the table wihh the outputs

weighted.mean.and.sd = do.call(rbind, weighted.mean.and.sd)`dim.reduce`

. - The code will return an output like the one below. Select the output and select
**Copy > Copy Data**from the toolbar.

- Paste the data into Excel.

- Select
- Next, we will need to obtain the score weights from the PCA.
- Select
**Calculation > Custom Code**from the toolbar and draw an output on the page. - Go to
**Properties > R Code**and input the below code:

`#Define your input mode name`

input.model = dim.reduce

#Obtain the weights

score.weights = input.model$score.weights - The code will return an output like the one below. Select the output and select
**Copy > Copy Data**from the toolbar.

- Paste the data into Excel.

- Select
- In the next step, we will obtain the respondent-level data used in the PCA.
- Select
**Calculation > Custom Code**from the toolbar and draw an output on the page. - Go to
**Properties > R Code**and input the below code:`dim.reduce$data.used`

. - Select the output and select
**Copy > Copy Data**from the toolbar. - Paste the data into Excel.

- Select
- For each component, do the sum-product of the scaled respondent data and the component scores for that component (see Excel file with Calculations).
- To check the values match those obtained using
**Save Variable(s) > Components/ Dimensions**. , select`Scores from dim.reduce`

variable set from the**Data Sets tree,**right-click >**Show in Data Editor.**

And compare it to the outputs calculated in Excel:
