One of the best ways to fast-track your report building is to have your own PowerPoint templates replicated in Displayr. In this way, as you build your analysis it will already be “on-brand” and there will be minimal work to do when you export to PowerPoint, if any at all.
The good news is this can be done in a few simple steps. A video of these steps can be found in the following document: How to Setup Branded Powerpoint Templates in Displayr
1. Have a document with your PowerPoint template ready.
This will typically be in Standard (4:3 or A4) or Widescreen (16:9) format. Decide what format your new Displayr template is to be in.
2. Open a blank Displayr document
From the Document page, select +New Document, check that the tab at the top is set to your desired format, then select ’Blank’
3. Go to the Page Master and edit the Displayr defaults
In addition to a “Blank” page (which requires no editing), there are default layouts for Title Only, Title Page, and Title and various Content Layouts.
This is the key step – you basically need to change the titles, text box formats and default chart colors to reflect your PowerPoint template and paste in any graphical elements from PowerPoint.
You can duplicate and edit any of these pages if you want to add more master pages.
4. Save your template using the required file naming conversion and download a QPack.
- Select Publish > Export Data > Download Document (*.QPack)
Note: When downloading the QPack, if you have files stored in the Displayr Cloud Drive, you will be prompted to download them directly when exporting.
- Name the *.QPack as per these conventions (this is required for it to be read in when uploaded, in Step 6).
- Widescreen templates: [Template Name].widescreen.template.QPack
- Standard templates: [Template Name].template.QPack
- Be case specific for the "widescreen" and "template" terms
5. Create thumbnail images of some of the key pages (optional)
This step enables you to see a preview of your template in the gallery when creating a new document, so it’s worth doing. These are also used in Step 6.
The file-naming convention for the first image to show in the gallery is:
- Widescreen templates: [Template Name] 1.widescreen.template.png
- Standard templates: [Template Name] 1.template.png
For second and subsequent images, replace the “1”, with 2, 3, etc. Note, apart tom the name text before the number, these terms are case-sensitive and there must be a space between the template name and the number.
6. Upload the template *.QPack and related *.png files to your Displayr Cloud Drive
The Displayr Cloud Drive is accessed via the Icon at the top right of the screen:

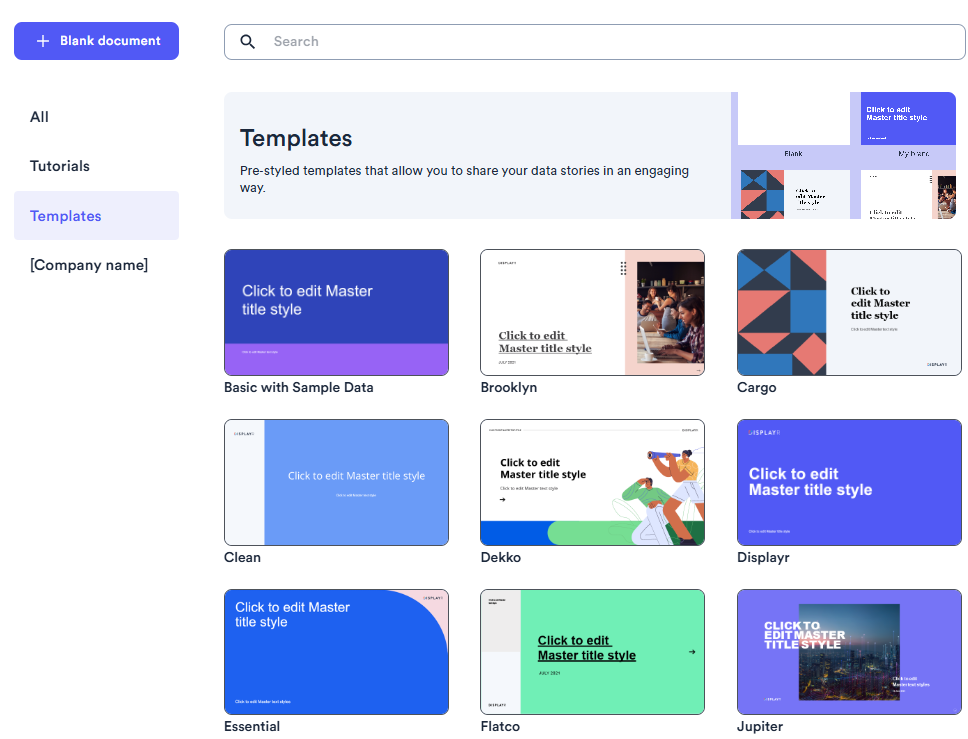

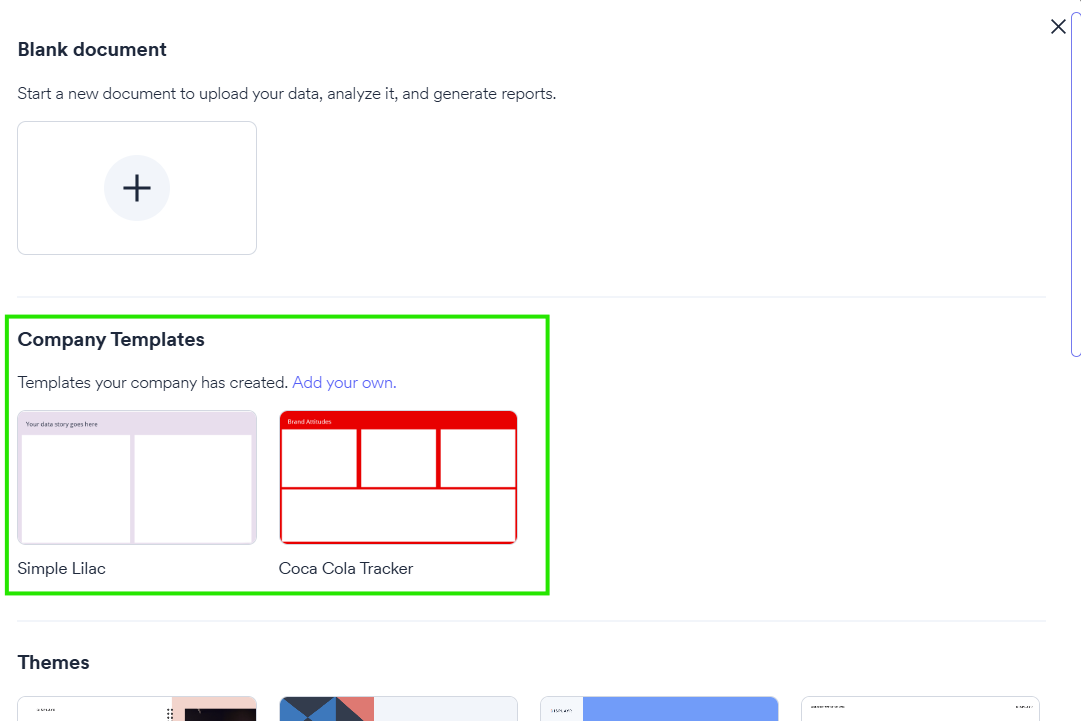

Shortly after this step, you will see your own template available from the gallery of options when you create a new document (as per the “Burger Chef” example here).
