How to Create a Rolling Average on Tables and Visualizations

This article describes how to go from a crosstab with a Date/Time variable set...

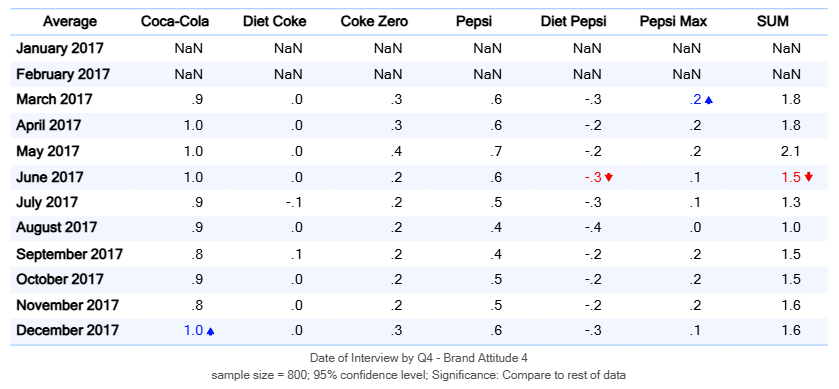

...to a table or visualization with a lagged rolling (aka smoothing or moving) average:

Requirements

• A table or visualization with a Date/Time variable.

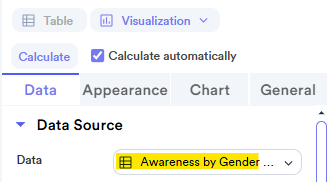

Note: You must apply the rule directly to the input table if you see a table icon in the Data > Data Source > Data field in the Properties of a visualization.

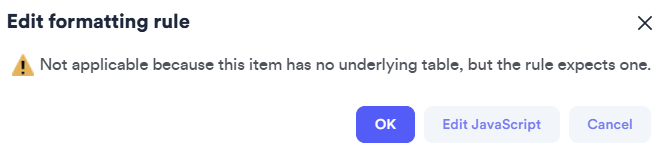

You will also see a warning in the Rules section of Properties if you have applied a rule directly to a non-compatible visualization, and you will need to apply it to the input table instead. For example:

Method

1. Select your table or visualization.
2. Go to Data > Rules in Properties.
3. Select Plus (+) > Cell Content > Replace Value with Rolling Average.
4. Set the Number of periods to roll.
5. OPTIONAL: Tick Dates are in the rows if applicable.
6. Press OK.

Please note the following:

• A lagged rolling average is computed. For example, if January has a score of 3, February 4, and March 6, the 3-period rolling average for March is (3 + 4 + 6) / 3 = 4.33333333.
• Where values cannot be computed due to insufficient data, the value is shown as NaN. For example, if January has a score of 3, February 4, and March 6, the 3-period rolling average for the three months, respectively, are NaN, NaN, and 4.33333333.
• This rule is only applied to the first statistic selected in each of Statistics > Cells and whichever is appropriate of Statistics > Below and Statistics > Right.
• You may not have a NET in the variable containing the dates.
• The statistical testing results in the table are not changed by this rule. That is, they reflect the results for the original, unrolled statistics.
