How to Customize a Rule

Introduction

This article describes how to edit the underlying JavaScript in a Rule that has been applied to a table...

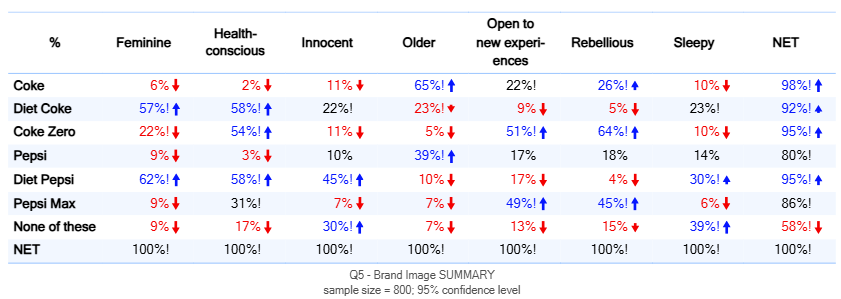

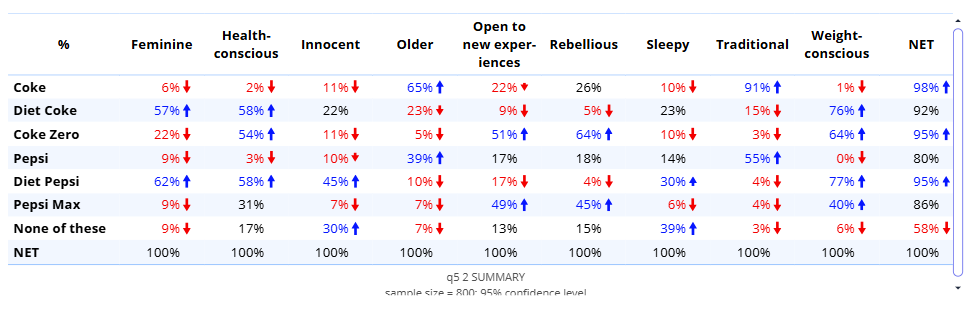

...so you can, for example, reverse a condition to apply text to cells larger than a specific value so that it instead does this for cells that are smaller than this value:

Requirements

A table with a Rule applied. This article uses the example from How to Add Text to Table Cells with Large Numbers. Note, Highlight Cells, Top/Bottom and Color Scale Rules cannot be modified in this way.

Method

1. Select your table.

2. Go to Properties > RULES on the object inspector.

3. Right-click the Rule you wish to edit > Edit > Edit JavaScript.

4. Amend the JavaScript code where necessary. In this example, we can identify the part of the code that applies the condition as follows:

if (value > threshold) {

To reverse this condition so that it applies instead when under this threshold, we would change this to:

if (value < threshold) {

5. Press OK > OK.

Note, if this Rule was originally applied to multiple tables at the same time, you have selected the Use for new table and charts option, or this is a copy of a table that had the Rule already applied, this change will apply to all these instances of the Rule.
